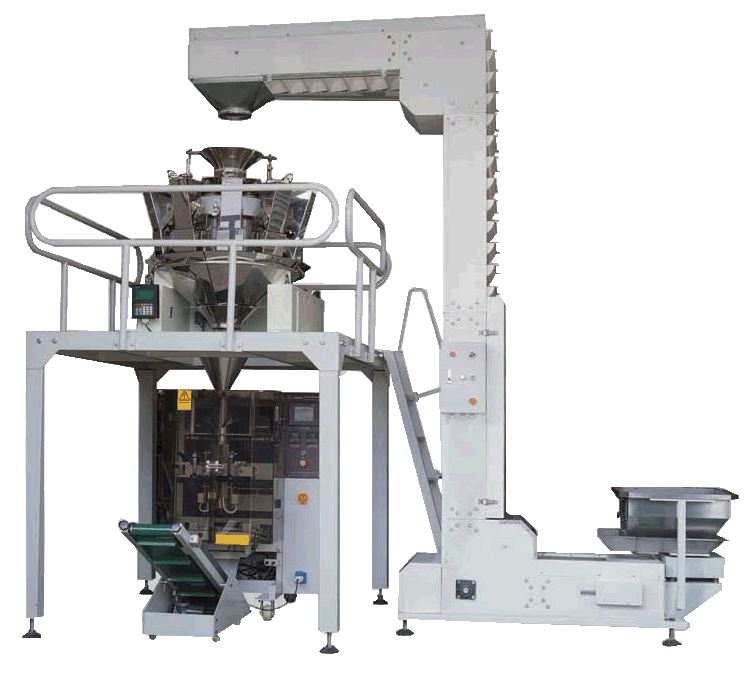

Vertical tubular bag Machines VDX-420, 520
Features
Servo film feeding system, correct register, sealingand cutting positions adopt automatic correction device, high automation.
Technical Date
Modle | VDX-420 | VDX-520 |
| Volts/Power | AC230V/400V 50/60Hz 3.5KW | AC230V/400V 50/60Hz 3.8KW |
Packing Speed | 15-70bags/min | 15-70bags/min |
Bag-making Width | 80-200 mm | 80-250 mm |
Bag-making Length | 80-300 mm | 80-350 mm |
Film Width | 180-420 mm | 180-520 mm |
Filling Range | 10-2000 g | 10-2500 g |
Air Consumption | 0.4m³/min 0.6MPa | 0.4m³/min 0.6MPa |
Machine Size (L*W*H) | 1750x1050x1500 mm | 2150x1250x1650 mm |
Machine Weight | 500 KG | 650 KG |
