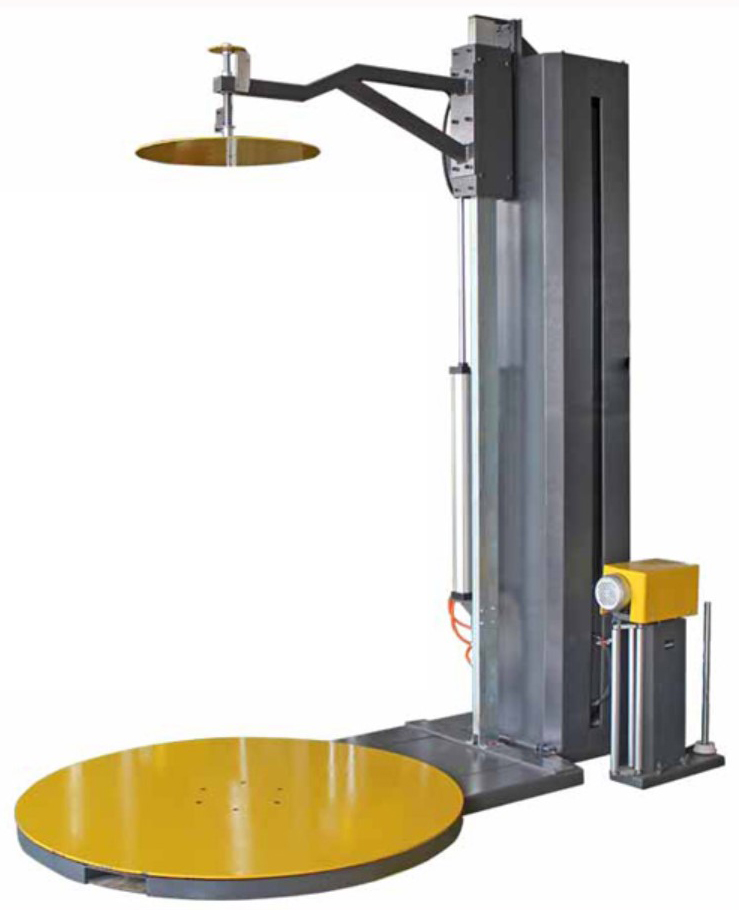

Pallet wrapping Machines SW-2517R
Features
Pressure Winding.

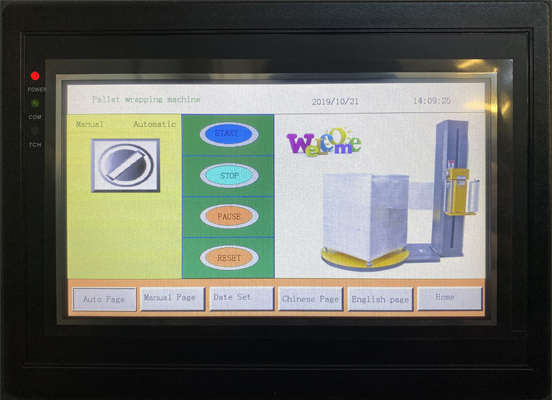

PLC Programmable, touch screen control, easy to operate and use.
Film pre-stretch.
Technical Date
MODEL | SW-2517RⅠ | SW-2517RⅡ | SW-2517RⅢ |
Volts/Power | 230V 50Hz/1.5KW | 230V 50Hz/1.5KW | 230V 50Hz/1.5KW |
Packing speed | 30-40pcs/hour | 30-40pcs/hour | 30-40pcs/hour |
Maximum Packing Height | 2000mm | 2200mm | 2400mm |
Maximum Packing Weight | 2000KG | 2000KG | 2000KG |
Turntable Size | Φ1500mm | Φ1500mm | Φ1500mm |
Applicable film width | 500mm | 500mm | 500mm |
Compressed air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Machine Size (L*W*H) | 2450x1500x2400mm | 2450x1500x2600mm | 2450x1500x2800mm |
Machine Weight | 800KG | 820KG | 840KG |
PS: Other size can be customized by customer requirements
